Stiffness & Inertia Elements

Leverage agile frameworks to provide a robust synopsis for high level.

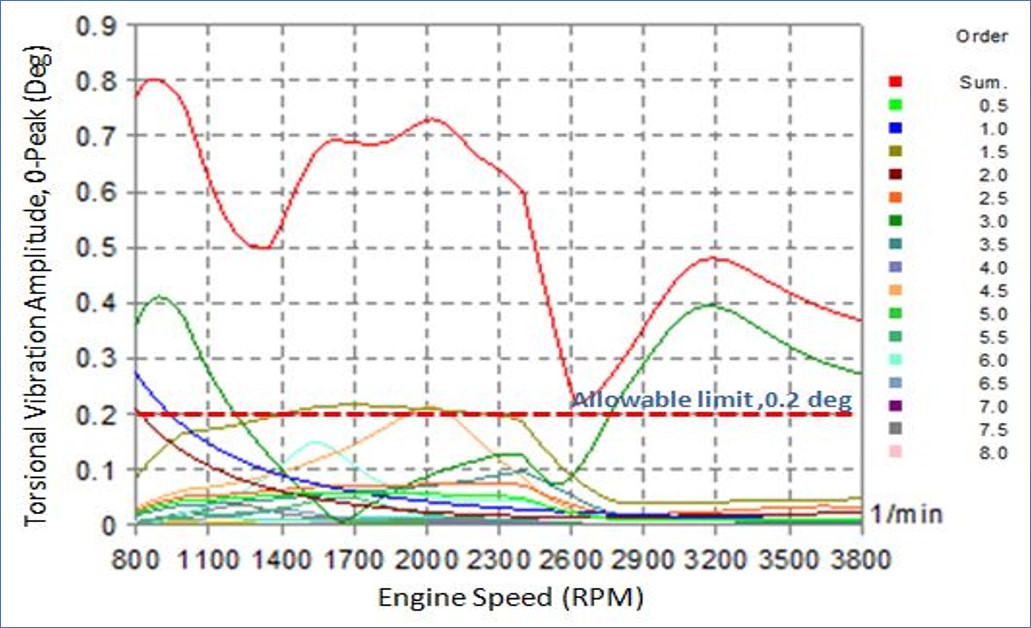

Simulation Analysis

Leverage agile frameworks to provide a robust synopsis for high level.

Finite Element Method

Leverage agile frameworks to provide a robust synopsis for high level.

Natural Frequency Test

Two accelerometers are mounted in phase, one on actuator and the other on Damper inertia ring. Which in turn acts as closed loop circuit.

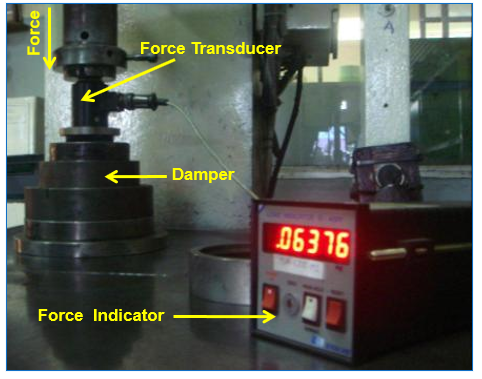

Axial Pull Test

A precisely controlled press is used to find out the axial force & the adhesive strength of the damper.

Slip Torque Test

Torque applied under static condition on the damper elastic member by fixing either inertia ring or hub & gradually displacing the other to measure the Torsional bonding strength of the rubber element under assembly.

System Undamped Response

System Damped Response

System Vehicle Response

Alternate Material

Leverage agile frameworks to provide a robust synopsis for high level.

Advance Material

High Heat stability upto 200°C.
Higher tear resistance.
Excellent resistance to oil, coolant, fuels, and hydrocarbons.
Better damping properties.
High elasticity.
Lower compression set.

Alternate Material

Low Density
Better heat transfer coefficient than casting
Mechanical properties at par with S.G. Iron
Reduction in wastage in manufacturing process
